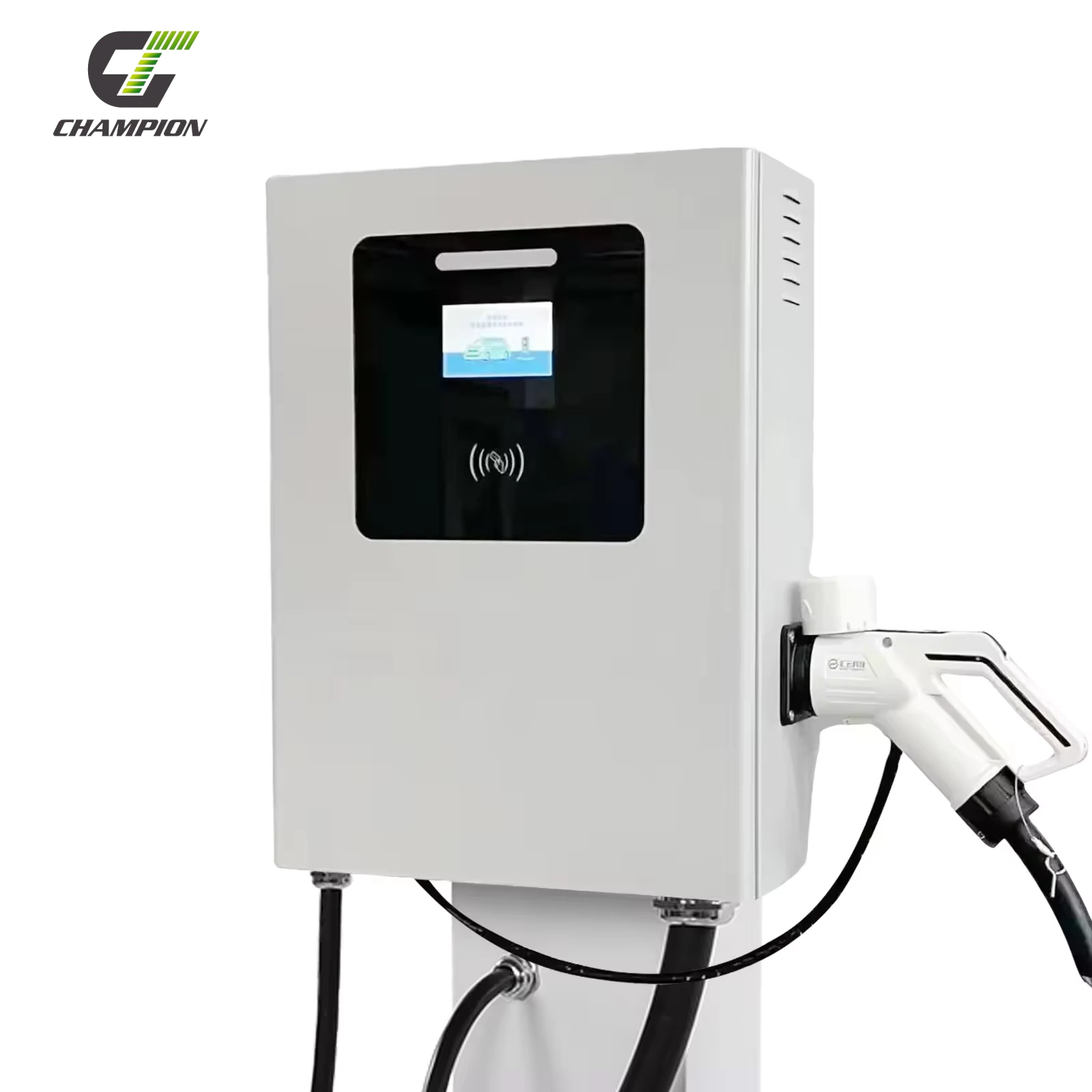

Wall-mounted DC ev charging

Ce Certification 7kw 15kw 20kw 30kw Ocpp1.6J Ev Charger GBT Dc Charging Station Wallbox With Rfid Card Ev Charger

The wall-mounted DC EV charging system is becoming increasingly popular. It offers fast charging capabilities and can be conveniently mounted on the wall. With options ranging from 7kw to 30kw, it provides a safe and efficient charging solution for electric vehicles.

    oops...!

    no product data.

    Go to homepage

    Product display

    Wall-mounted DC ev charging 7

    Product Parameters
    Model
    FCS07750E/A/J
    FCS15750E/A/J
    FCS20750E/A/J
    FCS30750E/A/J
    Input characteristics
    Voltage range
    AC90-265V
    AC265-475V
    AC265-475V
    AC265-475V
    Working Frequency
    45-66HZ
    Efficiency
    ≥95%
    Input Current
    32A
    30A
    40A
    50A
    Output characteristics
    Output Power
    7KW
    15KW
    20KW
    30KW
    Voltage range
    200-750VDC
    Max Current
    20A
    25A/33A
    33A/60A
    50A/100A
    Operating temperature
    -20℃-50℃
    Storage temperature
    -40℃-70℃
    Altitude
    2000M
    Dimensions and protection
    size(mm)
    545*380*170mm
    645*454*170mm
    weight
    20 KG
    30KG
    35KG
    45KG
    IP Level
    IP54
    Others
    Human Machine Interface
    4.3inch color touch screen
    Protective function
    Lightning protection, overload, short circuit over temperature, leakage, emergency stop protection, etc.
    Charging options
    Plug and play, timing, appointment, payment, etc.
    Communication protocol
    GBT27930 / CHADEMO 20 DIN 70121,0CPP 1.6 (SON ),SO 15118
