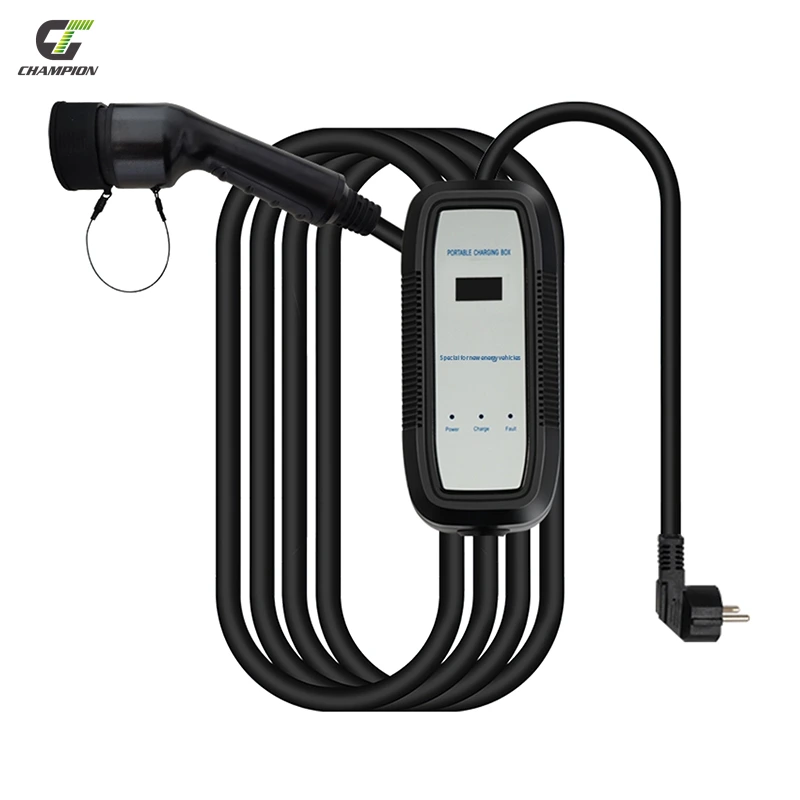

Portable AC Charging Stations CFP 035B
The "Portable AC Charging Stations CFP 035B" is a compact charging system that allows users to conveniently charge electronic devices on the go. Its lightweight design and multiple ports ensure compatibility with a wide range of devices, while its fast-charging capabilities make it a reliable and efficient choice. With its portability, versatility, and rapid charging, this charging station is sure to impress users looking for a convenient and reliable power solution.
|
Datasheet |
Parameters |
|
|
Appearance structure |
Name |
AC 16A Adjustment Reservation Ev Charger |
|
Model |
Plug&Play/Book time |
|
|
Enclosure |
Charging gun-Control boxPC9330 |
|
|
Size |
Charging Gun 240*98*70mm/Control Box 220*80*70mm【H*W*D】 |
|
|
Installation Method |
Floor-mounted/Wall-Mounted |
|
|
Install Components |
Screw |
|
|
Power Direction |
Input(Up)&Output(Down) |
|
|
Net Weight |
About 2KG |
|
|
Cable Size |
3*2.5mm²+0.75mm2 |
|
|
Cable Length |
5M or Negotiation |
|
|
Electrical index |
Input Voltage |
AC90V-265V |
|
Input Frequency |
50Hz/60Hz |
|
|
Max Power |
3.5KW |
|
|
Output Voltage |
AC90V-265V |
|
|
Output Current |
8A-10A-13A-16A |
|
|
Standby Power |
3W |
|
|
Environment |
Applicable scene |
Indoor or Outdoor |
|
Work Humidity |
5%～95%(non-condensing |
|
|
Work Temperature |
-30℃~+50℃ |
|
|
Work Altitude |
<2000M |
|
|
Protection Class |
Charging Gun IP67/Control Box IP54 |
|
|
Cooling Method |
Natural Cooling |
|
|
Standard |
EC 62196-2 |
|
|
ty rating |
UL94 V0 |
|
|
Certificate |
CE, RoHS |
|
|
Functional design |
Interface |
Display Screen, LED Indicator Light |
|
Communication |
/ |
|
|
Safety design |
Over Curren Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage,Frequency,Temperature Protection |
|
|
Packaging specification |
L*W*H:410*410*125mm【2.8KG】 |
|
Advantage
Small size,easy to storage, cost-effective, charging statuas identification
IP67 Level
Injection-molded one- piece gun, have anti- corrosion and weather proof
Protection
Leakage current protection, and over temperature protection etc.
