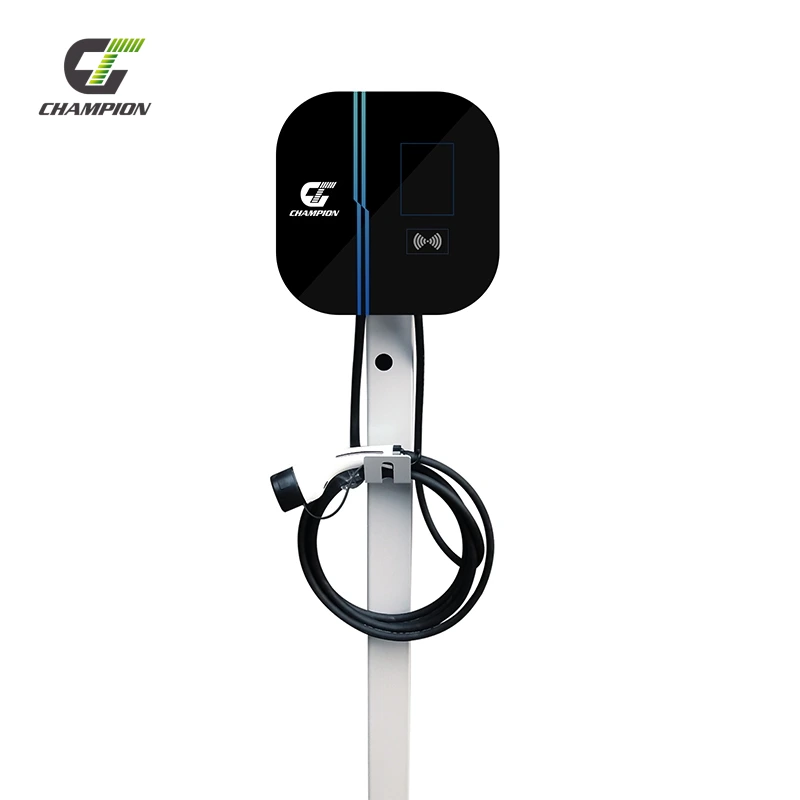

Wall-mounted AC Charging Stations-CFE A07C

Portable and convenient Small size and lightweight, portable for use anywhere, flexible charging environment, easy to install and operate, patented with appearance.

Inquiry

Write a Review

Model	MC07750	MC15750	MC20750	MC30750	MC40750
Output Power	7KW	15KW	20KW	30KW	40KW
Input voltage	90-265V	260-475V
Input Connection	L+N+PE	3P+N+PE
Input Current	32A	25A	32A	45A	64A
Output Voltage		200-750V(200-1000Voptional)
Output Current	20A	25A/37A	33A/50A	50A/100A	66A/120A
Frequency	50/60 Hz
Power Factor	0.99@rated voltage
Efficiency	95%
TET-LCD Touch Panel	Digital tube	Voice navigation/Digital tube		4.3-inch display
Dimension(mm)	450×150×310	490×386×158		580×180×430	650×200×445
Weight	20KG	25KG	28KG	44KG	60KG
Auxiliary source	12V(24V optional)
Operating Temperature	-20°℃~+50℃
Altitude	2000M
IP LEVEL	IP43
ANTI-COLLISION CLASS	IK8 above
Input cable length	5M(CUSTOMIZATION ACCEPTABLE)
Gun cable Length	3M(CUSTOMIZATION ACCEPTABLE)
Applicable standard	GB/T20234/EN62196/EN61851-23,JEVSG105/CHADEMO
Communication protocol	GBT27930/CHADEMO 2.0/DIN 70121,0CPP 1.6(JSON),ISO 15118

Mobile Portability

Portable and convenient Small size and lightweight, portable for use

anywhere, flexible charging environment, easy to install and operate,

patented with appearance.

Security & Intelligence

● Full protection: OVP, UVP, OCP, SC, OTP, etc.

● Smart intelligent: Self monitor and recovery if the error disappear.

● Operating interface:one-button start-stop, voice navigation, screen

navigation.

Independent Ventilate Duct

● Unique patented technology, high protection level for outdoor use and high heat dissipation efficiency, make the product high performance and reliable.

● The inlet duct and outlet duct are isolated to improve heat transfer efficiency and make the product performance more stable;

● The outlet adopts direct air duct +fan, with minimum wind resistance and strong air output.

Support Customization

● The length of input cable can be customized according to requirements;

● Charging by appointment,password,Swipe card, operation, independent backend, customizable wifi+APP.

● Compliant to global charging standard such as GB/T, Chademo, CCS.

● Special order: Input can be type2 socket, so possible to be powered from public AC charging pile.
