Champion es un fabricante profesional de estaciones de carga para automóviles eléctricos, con la misión "New Energe Makes Space Better".

Dc Ev Charging Stations - - Champion 1
Dc Ev Charging Stations - - Champion 2
Dc Ev Charging Stations - - Champion 3
Dc Ev Charging Stations - - Champion 4
Dc Ev Charging Stations - - Champion 5
Dc Ev Charging Stations - - Champion 6
Dc Ev Charging Stations - - Champion 1
Dc Ev Charging Stations - - Champion 2
Dc Ev Charging Stations - - Champion 3
Dc Ev Charging Stations - - Champion 4
Dc Ev Charging Stations - - Champion 5
Dc Ev Charging Stations - - Champion 6

Dc Ev Charging Stations - - Champion

consulta
Envía tu consulta

Modelo

MC07750

MC15750

MC20750

MC30750

MC40750

Output Power

7KW

15KW

20KW

30KW

40KW

Input voltage

90-265V

260-475V

Input Connection

L+N+PE

3P+N+PE

Input Current

32A

25A

32A

45A

64A

Output Voltage



200-750V(200-1000Voptional)

Output Current

20A

25A/37A

33A/50A

50A/100A

66A/120A

Frequency

50/60 hz

Power Factor

0.99@rated voltage

Efikeco

95%

TET-LCD Touch Panel

Digital tube

Voice navigation/Digital tube

4.3-inch display

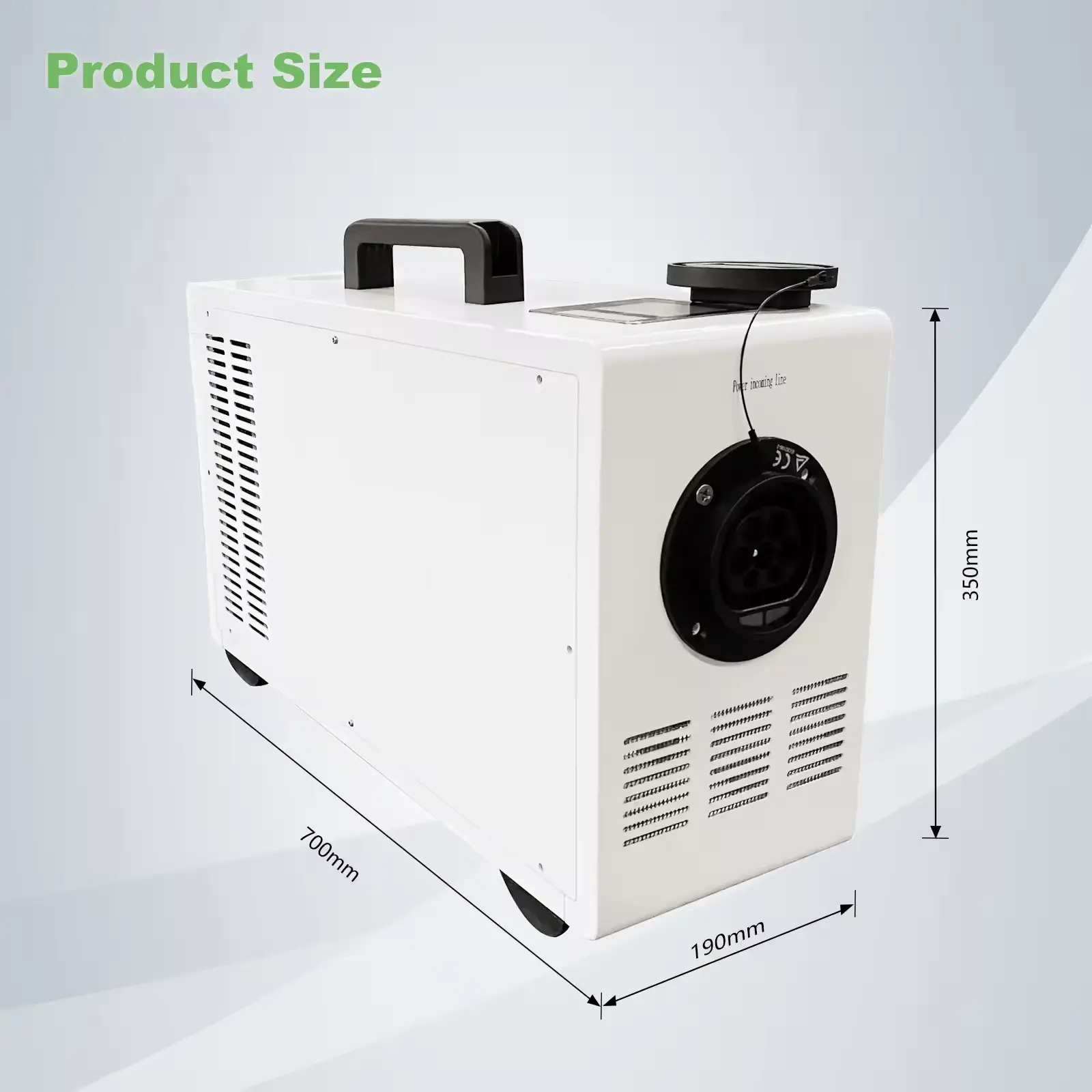

Dimension(mm)

450×150×310

490×386×158

580×180×430

650×200×445

Pezo

20KG

25KG

28KG

44KG

60KG

Auxiliary source

12V(24V optional)

Operating  Temperature

-20°℃~+50℃

Altitude

2000M

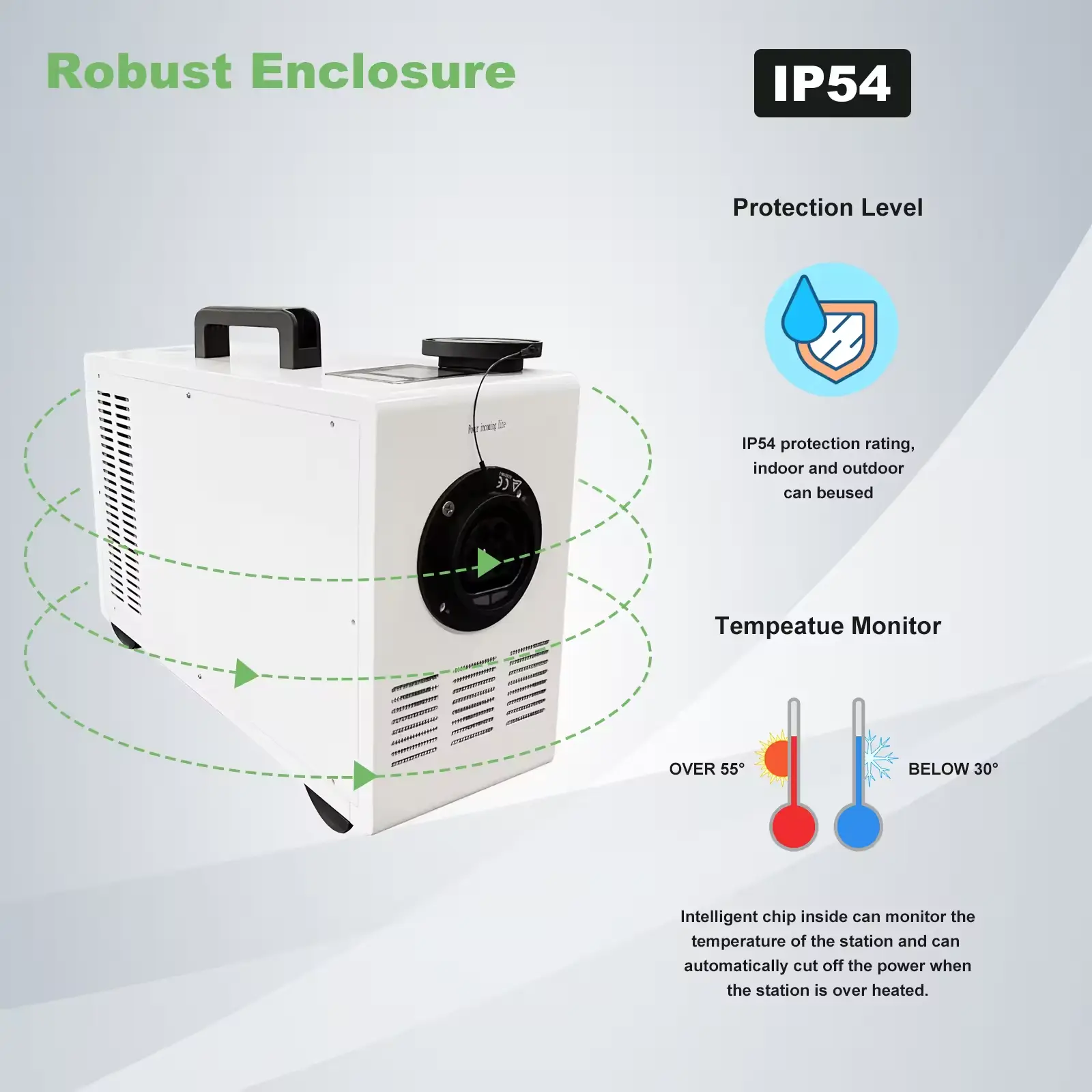

IP LEVEL

IP43

ANTI-COLLISION CLASS

IK8 above

Input cable length

5M(CUSTOMIZATION      ACCEPTABLE)

Gun cable Length

3M(CUSTOMIZATION ACCEPTABLE)

Applicable standard

GB/T20234/EN62196/EN61851-23,JEVSG105/CHADEMO

Communication protocol

GBT27930/CHADEMO 2.0/DIN 70121,0CPP 1.6(JSON),ISO 15118

微信图片_20240515151048

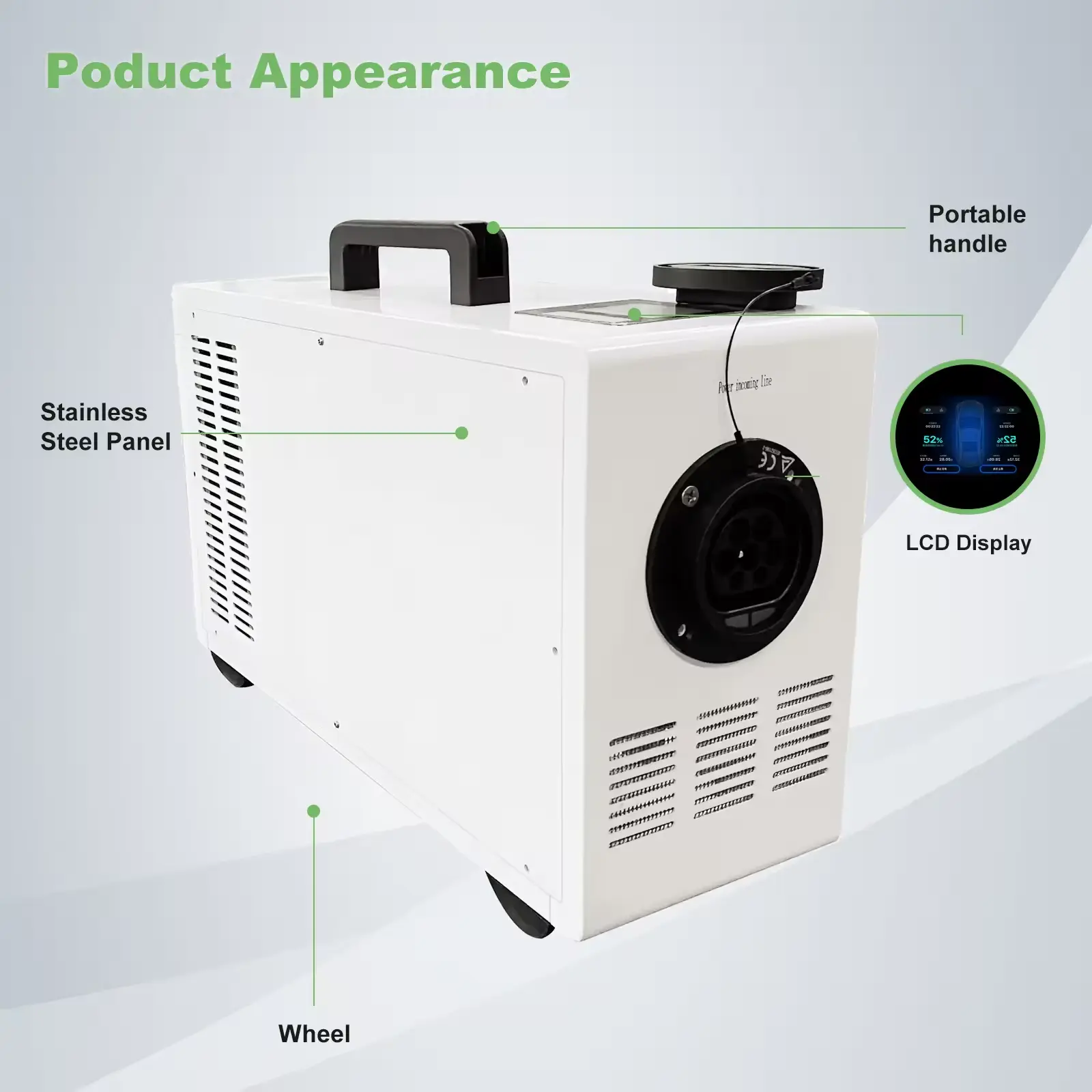

Mobile portability

Portable and convenient Small size and lightweight, portable for use

anywhere, flexible charging environment, easy to install and operate,

patented with appearance.

Security & intelligence

●   Full protection: OVP, UVP, OCP, SC, OTP, etc.

●  Smart intelligent:Self monitor and recovery if the error disappear.

●  Operating interface: one-button start-stop, voice navigation, screen

navigation.

微信图片_20240515151053
微信图片_20240515151056

Independent ventilate duct

●  Unique patented technology, high protection level for outdoor use and high heat dissipation efficiency, make the product high performance and reliable.

●  The inlet duct and outlet duct are isolated to improve heat transfer efficiency and make the product performance more stable;

●  The outlet adopts direct air duct +fan, with minimum wind resistance and strong air output.

Support customization

●  The length of input cable can be customized according to requirements;

●  Charging by appointment,password, Swipe  card, operation, independent backend, customizable wifi+APP

●  Compliant to global charging standard such as GB/T, Chademo, CCS.

●  Special order: Input can be type2 socket, so possible to be powered from public AC charging pile.

5 (18)


Company Advantages

· The raw materials of Champion dc ev charging stations is procured from reliable vendors across the world.

· Our special production technology makes the product performance indicators exceed the same industry standards.

· The product is well adapted to market needs and will be more widely used in the near future.


Company Features

· Zhejiang Champion New Energer Co., Ltd. has been engaged in the production of dc ev charging stations since its establishment.

· Champion masters advanced technology to produce dc ev charging stations with top quality.

· We are working hard to operate in a manner that protects our environment. We make our emissions to be discharged more reasonably, and encourage production team to utilize resources in a less wasteful way.


Application of the Product

Our dc ev charging stations has a wide range of applications.

With a focus on AC EV CHARGER,DC EV CHARGER, Champion is dedicated to providing reasonable solutions for customers.
