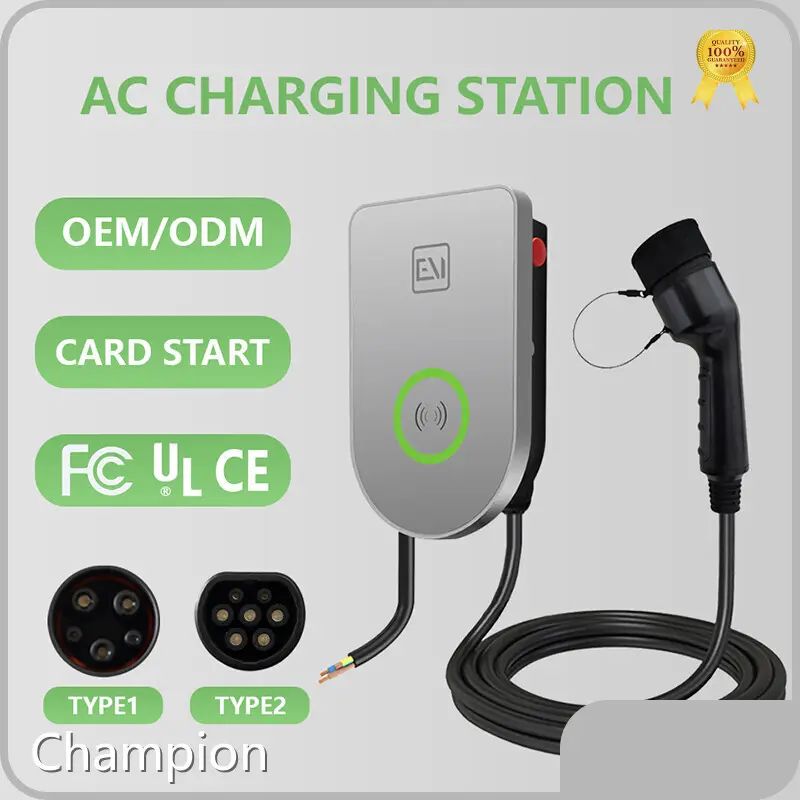

Wall Mountable Charging Station by Champion

استفسار

Product details of the wall mountable charging station


Quick Detail

The raw materials of Champion wall mountable charging station are paid great attention during the incoming material inspections. Strict quality inspection procedures throughout the entire production process, must have excellent quality and performance. The wall mountable charging station managed by Champion is widely used in industry. The product has long been known and well accepted in the industry for its extremely reliable performance.


ਉਤਪਾਦ ਵੇਰਵਾ

Our wall mountable charging station has the following differentiated advantages compared to similar products.

Datasheet

ਪੈਰਾਮੀਟਰ

Appearance structure

Name

AC 32A RFID Indicator B*Ev Charger

ਮਾਡਲ

RFID to Charge

Enclosure

Charging Gun PC9330/Control Box ABS/Glass style

ਆਕਾਰ

Charging Gun 240*98*70mm/Wall Box 268*228*100mm【H*W*D】

Installation Method

Wall-Mounted/Column

Install Components

Column(Option*)

Power Direction

Input(Down)&Output(Down)

Net Weight

About 5KG

Cable Size

3*6mm2+0.75mm2

Cable Length

5M or Negotiation

Electrical index

Input Voltage

AC90V-265V

Input Frequency

50Hz/60Hz

Max Power

7KW

Output Voltage

AC90V-265V

Output Current

32A

Standby Power

3W

Environment index

Applicable scene

Indoor or Outdoor

Work Humidity

5%~95%(non-condensing

Work Temperature

-30℃~+50℃

Work Altitude

<2000M

Protection Class

Charging Gun IP67/Control Box IP54

Cooling Method

Natural Cooling

Standard

EC     62196-2

ty rating

UL94 V0

Certificate

CE, RoHS

Functional design



ਇੰਟਰਫੇਸ

LED Indicator Light

Communication

OCPP 1.6



Safety design

Over Curren Protection, Residual Current Protection, Ground Protection, Surge Protection, Over/Under Voltage, Frequency, Temperature Protection

Packaging specification

L*W*H:460*300*250mm【5.5KG】

3 (5)

Product advantages

●  RFID

Homeuse  standard style,activate  RFID,then charging the car

IP67  Level

Injection-molded   one piece gun,have anti  corrosion  and weather proof

Protection

Leakage current protection,and over temperature  protection etc.

6 (3)
6 (3)
8 (3)
8 (3)
7 (6)
7 (6)
1 (5)
1 (5)
5 (4)
5 (4)
4 (6)
4 (6)
